Model No.: HC-180CNC-2A

status: New

Machinable material: Pvc, Plastic, Brass / Copper, Stainless Steel, Carbon Steel, Aluminium Alloy, Alloy, Aluminum

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: Ordinary Product

Core component warranty period: 1 Year

Core components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

degree of automation: Automatic

place of origin: China

Core selling point: Multifunctional

Applicable industry: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works, Energy &Amp; Mining, Other

warranty period: 1 Year

Out-of-warranty service: Video Technical Support, Online Support

Where to provide local services (in which countries are there overseas service outlets): None

Showroom location (in which countries are there sample rooms overseas): None

Automatic CNC Pipe Tube Hydraulic Pneumatic Cutting Machine Circular Saw Blade

for Thin Wall Stainless Steel Metal Pipes

1.Product Introduction:

The fully automatic thin-walled pipe cutting machine is a specialized equipment used for cutting thin-walled pipes. It has the characteristics of high efficiency, precision, and stability, which can achieve fast and accurate cutting of thin-walled pipes.

The machine adopts advanced cutting technology and control system, which can automatically complete the positioning, clamping, cutting and other processes of thin-walled pipes without manual intervention. It is usually equipped with high-precision sensors and control systems, which can achieve precise control of parameters such as cutting length and cutting angle.

2.Product Parameter:

Item	HC-180CNC-2A
Voltage	380V，220V/24V
Motor Power	2.2KW
Cooling pump motor power	40W
Air pressure	6Mpa
Feeding length	100
Max.opening of fixture	10mm
Saw Blade	180/150/120
Feeding Length	0-1000
Feeding Accuracy	±0.02(cutting accuracy±0.1)
Max.diameter	￠35
Machine Casing	yes
Size	22008001200(mm)
Weight	1200kg

3. Product Application:

The fully automatic thin-walled pipe cutting machine is suitable for various materials of thin-walled pipes, such as stainless steel pipes, aluminum pipes, copper pipes, etc. It can be widely applied in fields such as manufacturing, construction, and automotive manufacturing, especially suitable for enterprises with high demand for mass production.

The advantages of a fully automatic thin-walled pipe cutting machine include:
1. Efficient: Fully automatic operation, which can continuously and quickly complete cutting tasks, greatly improving production efficiency.
2. Precision: Equipped with high-precision sensors and control systems, it can achieve precise control of cutting length, cutting angle and other parameters.
3. Stability: Adopting the control system, it has stable performance and reliable operation.
4. Automation: Without manual intervention, fully automatic cutting process can be achieved, reducing labor costs.

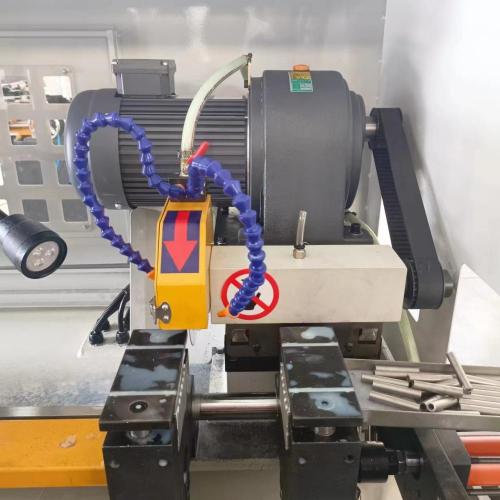

Automatic Pipe Cutting Machine
